| ブランド名: | HongCe |
| モデル番号: | HC9919 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | LC、T/T |
| 供給能力: | 毎月10セット |
When electrical products are used every day, power cords are repeatedly bent, twisted, and subjected to mechanical stress. Over time, poor cable durability can lead to insulation damage, conductor breakage, and product failure.

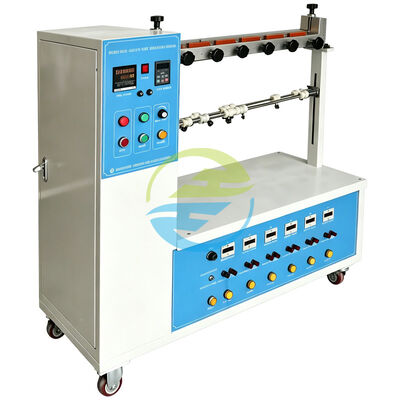

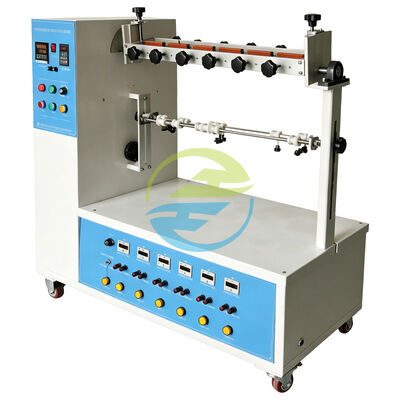

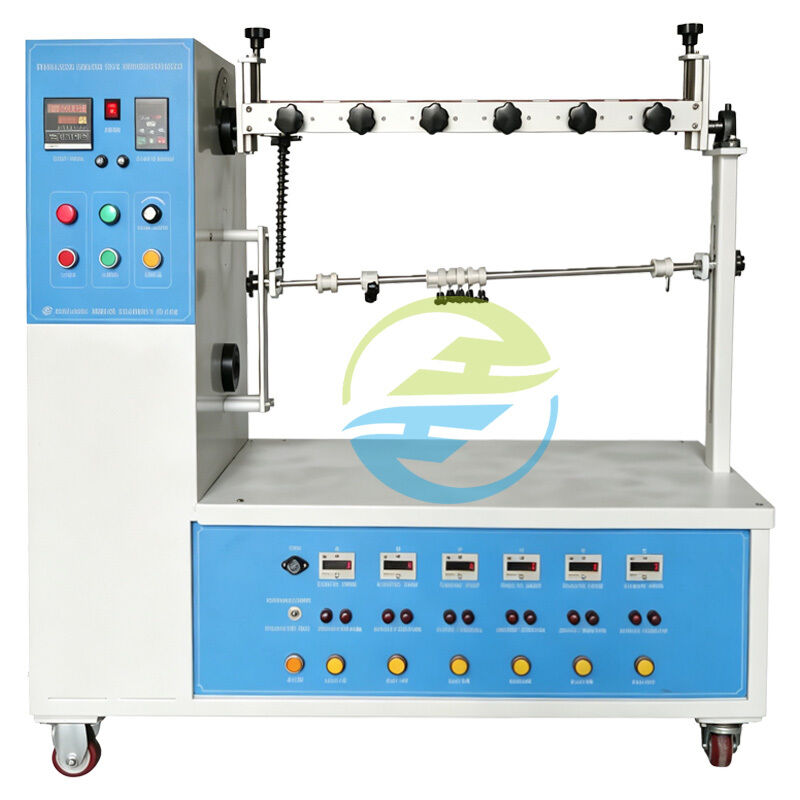

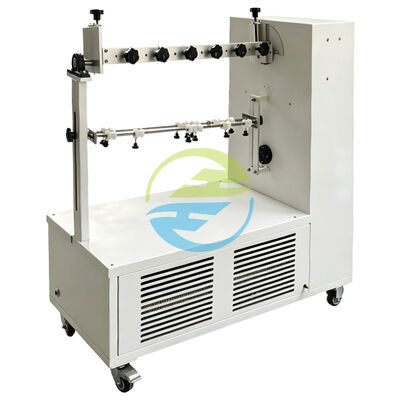

The HongCe Power Cord Bending Tester is specifically designed to evaluate the bending endurance and fatigue resistance of power supply cords, flexible cables, non-rewirable plugs, and portable socket-outlets. Built in accordance with international IEC standards, this equipment accurately simulates real-life cord movement conditions, helping manufacturers verify product reliability before market release.
As a professional testing equipment manufacturer, HongCe provides complete in-house R&D, manufacturing, calibration, installation, and after-sales support, ensuring long-term testing accuracy and dependable service for global customers.
Power cords are among the most frequently stressed components in electrical appliances.
Repeated flexing may cause:
The HongCe Power Cord Bending Tester helps manufacturers identify potential weaknesses before products reach consumers, reducing warranty claims and improving product quality.
IEC 60884-1
Plugs and Socket-Outlets for Household and Similar Purposes
Clause 23.4
Tests the durability of flexible cables and cord anchorage under repeated bending conditions.
Clause 23.5
Evaluates mechanical stresses applied to flexible cords connected to plugs and socket-outlets.
| Power Supply | AC220V, 60Hz (can customed by the customer) |
| Numbers of Test Stations | 6, With 6 Sets Of Clamps |
| Numbers of flexing times | 1-999999 (adjustable). With 6 independent counters corresponding to each station, and there is a general counter |
| Rate of Flexing | 10~60 rpm (adjustable) |
| Flexing Angles | Swivel angle on either side for 45°, 60°, 90° |
| Sample connecting wires | 6 PCS |
| Weights | 10N/20N*6(the weight of UL113g and 284g) |
| Breaking indication | Indicator display |
| Dimensions | L*W*H=870mm *610mm* 820mm |
| Conforms to standard | IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620 |
| Mechanical theory | The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action. |
