Power Cord Bending Tester for Flexible Cables & Appliance Power Supply Multi-Station Tensile Strength Testing Machine Compliant with IEC Standards

ブランド名:	HongCe
モデル番号:	HC9919
MOQ:	1セット
価格:	交渉可能
支払条件:	LC、T/T
供給能力:	毎月10セット

詳細情報

製品の説明

詳細情報

起源の場所:

中国

証明:

Calibration certificate(cost additional)

電源:

AC220V,60Hz (お客様がカスタマイズできる)

折りたたみの速さ:

10~60rpm (調節可能)

角度を曲げること:

両側から45°,60°,90°の回転角

寸法:

L*W*H=870mm*610mm*820mm

サンプル接続ワイヤー:

6個

重さ:

10N/20N*6 (UL113gと284gの重量)

テストステーションの数:

6組のクランプとの6、

折りたたみの時間数:

1-999999 (調節可能).各駅に対応する6つの独立したカウンター,および一般的なカウンターがあります

パッケージの詳細:

合板

ハイライト:

Power cord bending tester IEC compliant

Flexible cable tensile strength tester

Appliance power supply testing machine

製品の説明

Power Cord Bending Tester for Flexible Cables & Appliance Power Supply

HongCe's Power Cord Bending Tester evaluates the durability and mechanical strength of flexible cables and appliance power supply cords under real-world conditions. This multi-station tensile strength testing machine ensures compliance with international IEC standards while delivering reliable, repeatable results for quality assurance.

Product Features

Multi-station design for enhanced testing efficiency
Simultaneous bending fatigue and tensile strength testing capabilities
Stable mechanical structure ensures test result repeatability
Adjustable bending angle, speed, and test cycle count
Independent load control for each test station
User-friendly control interface for easy operation and maintenance
Engineered for long-term durability testing applications

International Reference Standards

IEC 60884-1 - Clause 23 & 24: Mechanical strength and flexible cord anchorage

IEC 60335-1 - Clause 25: Supply connection and external flexible cords

IEC 60227 / IEC 60245 - Flexible cables for rated voltages

Technical Parameters

Parameter	Specification
Power Supply	AC220V, 60Hz (customizable)
Test Stations	6 stations with 6 sets of clamps
Flexing Cycles	1-999,999 (adjustable) with individual and general counters
Flexing Rate	10-60 rpm (adjustable)
Flexing Angles	Swivel angle options: 45°, 60°, 90°
Sample Connections	6 connecting wires
Weights	10N/20N*6 (UL113g and 284g weights)
Breaking Indication	Visual indicator display
Dimensions	870mm × 610mm × 820mm (L×W×H)
Compliance	IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620
Mechanical Principle	Electric motor-driven crank block on reduction gearbox for reciprocating action

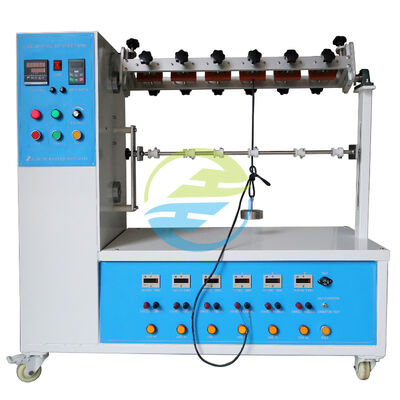

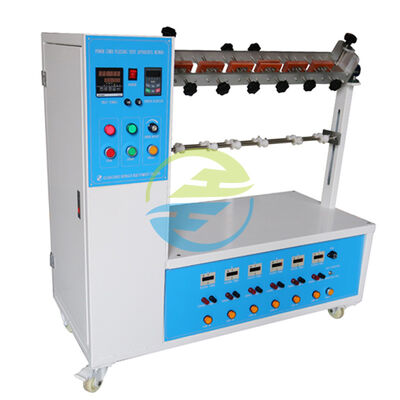

Product Images

Frequently Asked Questions

Is this tester suitable for different cord diameters?

Yes, interchangeable fixtures allow testing of various cable sizes and diameters.

Can test parameters be customized to specific standards?

Absolutely. HongCe supports parameter customization based on IEC, UL, EN, or customer-defined requirements.

How many stations can operate simultaneously?

The number of test stations can be configured according to your specific testing capacity needs.

Is calibration support provided?

Yes, calibration guidance and documentation are available upon request to ensure testing accuracy.

Is the machine suitable for continuous operation?

The tester is specifically designed for long-term endurance testing with stable performance and reliability.

About Guangzhou HongCe Equipment Co., Ltd

Established in 2003 and headquartered in Guangdong, China, Guangzhou HongCe Equipment Co., Ltd is a leading manufacturer in the inspection equipment industry. Our integrated approach combines advanced equipment, cutting-edge production processes, and rigorous quality control throughout the manufacturing workflow.

With a team of skilled technicians and engineers, state-of-the-art machinery, and modern management systems incorporating CAD and automated controls, our products consistently meet international leading standards. As an integrated R&D, design, production, and sales entity, we specialize in manufacturing:

Plug/socket wire inspection equipment
Electronic mechanical durability testers
Electrical fire hazard detection systems
Anti-shock & solid-object ingress testing devices
General inspection instruments
Custom non-standard testing solutions

Our products are highly regarded both domestically and globally, with long-term partnerships established with numerous renowned enterprises in the manufacturing and testing industries.
