Tensile Strength Testing Machine for Laboratory & IEC Compliance | High-Accuracy Material Force Analysis System

ブランド名:	HongCe
モデル番号:	HC-TSTE0303
MOQ:	1セット
支払条件:	LC、T/T
供給能力:	1ヶ月あたりの20

詳細情報

製品の説明

詳細情報

起源の場所:

中国

パッケージの詳細:

合板

ハイライト:

high-accuracy tensile strength tester

laboratory material force analyzer

IEC compliant tensile testing machine

製品の説明

Redefining Precision in Material Testing

Strength is invisible — until you measure it. This Tensile Strength Testing Machine is engineered for laboratories and manufacturers who refuse to guess when it comes to mechanical performance. Built for accuracy, durability, and international compliance, it delivers reliable tensile, compression, peel, and pull-out force testing for electrical components, cables, plastics, rubber, metals, and composite materials.

In modern quality control, data is credibility. This system ensures yours stands firm.

Product Overview

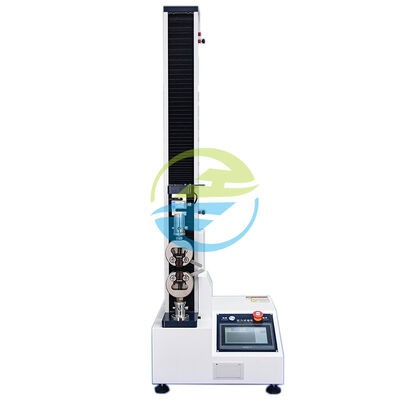

The Tensile Strength Testing Machine is a digitally controlled universal material testing system used to determine the mechanical strength of materials and finished components. From small electronic parts to cable assemblies, this machine performs controlled tensile and compression testing with accurate force monitoring and displacement tracking. The rigid double-column structure minimizes vibration, while the precision drive system ensures smooth load application throughout the test cycle.

It supports a wide variety of IEC-related mechanical verification tests and general material strength evaluations in industrial and laboratory environments.

International Reference Standards

IEC 60884-1 – Mechanical strength and withdrawal force test
IEC 60227 – Tensile strength and elongation verification of insulated cables
IEC 60335-1 – Mechanical performance requirements for appliances
IEC 60598-1 – Mechanical resistance testing for luminaires
ISO 527 – Determination of tensile properties for plastics
ISO 37 – Rubber tensile stress-strain testing
ASTM D638 – Tensile properties of plastics

Suitable Testing Materials

Electrical wires and cables
Plug pins and terminals
Crimped connectors
Plastic housings
Rubber seals
Insulation materials

Technical Specifications

Maximum Test Force	300N / 500N / 1000N (optional)
Force Accuracy	±0.5% F.S
Force Resolution	0.01N
Speed Range	1 – 500mm/min
Speed Accuracy	±1%
Effective Stroke	600mm
Displacement Resolution	0.01 mm
Control Mode	Microcomputer control

Application Fields

IEC compliance laboratories
Electrical appliance manufacturers
Cable production plants
Third-party testing institutions
Automotive component suppliers

Operational Benefits

Beyond accuracy, the real value lies in efficiency. The machine reduces operator intervention, shortens test preparation time, and delivers consistent results batch after batch. For factories running daily mechanical tests, this translates directly into higher productivity and reduced human error.

When reliability becomes routine, quality becomes predictable.

Frequently Asked Questions

Can this machine perform both tensile and compression tests?

Yes. It supports multi-mode mechanical testing with interchangeable fixtures.

Is it suitable for IEC plug withdrawal testing?

Yes. With appropriate fixtures, it can perform pull-out force testing according to IEC requirements.

Can testing speed be customized?

Yes. Speed is adjustable within the specified range.

Does it include computer software?

Yes. Professional testing software enables curve analysis and printable reports.

Can different force capacities be selected?

Yes. Load capacity can be configured according to testing needs.
