| ブランド名: | HongCe |
| モデル番号: | HC-BTEM004 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | L/C、D/P、T/T |
| 供給能力: | 1 1ヶ月あたりにセット |

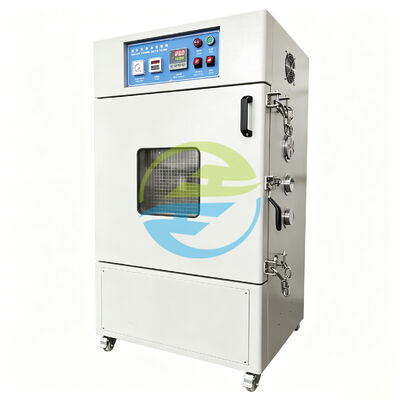

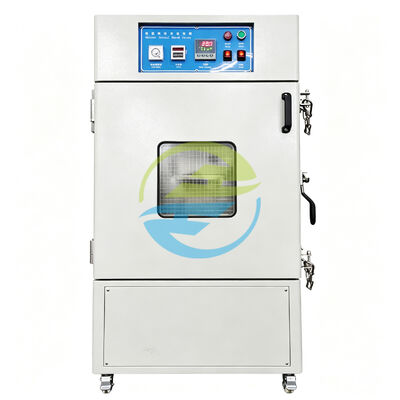

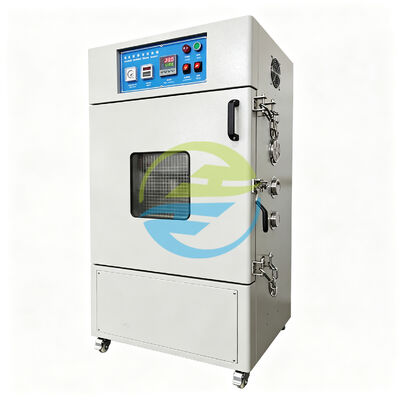

High Temperature Battery Thermal Shock Test Chamber for Battery Testing Equipment with RT~200°C Uniform Hot Air Circulation and 400×400×400mm Test Chamber
Battery Thermal Shock Test Chamber | Precision High Temperature Test Equipment for Lithium Battery Safety and Reliability Testing
Reliable batteries begin with reliable testing.
The HongCe Battery Thermal Shock Test Chamber is engineered to evaluate how batteries perform when exposed to elevated temperatures under controlled conditions. Designed for laboratories, battery manufacturers, certification organizations, universities, and R&D centers, this equipment simulates the thermal environments specified by international battery safety standards.
Using a precisely controlled hot air circulation system, the chamber raises the temperature at a controlled heating rate until the preset value is reached and maintains stable thermal conditions throughout the testing cycle. Excellent temperature uniformity helps ensure repeatable and trustworthy test results.
As a professional manufacturer of Battery Testing Equipment, HongCe combines in-house research, precision manufacturing, and long-term technical support to deliver dependable testing solutions for global customers.
Reliable batteries begin with reliable testing.
The battery thermal shock test chamber is designed to evaluate battery performance when exposed to high temperatures under controlled conditions.
The chamber utilizes a precisely controlled hot air circulation system to raise the temperature at a controlled rate until a preset value is reached, maintaining stable temperature conditions throughout the entire test cycle. Excellent temperature uniformity helps ensure the repeatability and reliability of test results.
Choosing testing equipment is not simply about purchasing a machine—it is about selecting a long-term technical partner.
HongCe has been dedicated to developing IEC testing equipment and battery testing solutions for customers worldwide. Every testing chamber is manufactured under strict quality control procedures to ensure stable operation, reliable accuracy, and long service life.
Unlike trading companies, HongCe owns its manufacturing facilities, engineering teams, machining capabilities, and assembly workshops. This allows customers to communicate directly with engineers while benefiting from competitive factory pricing.
Our engineering team continuously improves chamber structure, temperature control systems, airflow design, and operational reliability to satisfy changing international testing requirements.
Different laboratories often require customized chamber dimensions, temperature ranges, control interfaces, voltage configurations, or special fixtures. HongCe provides flexible OEM and ODM solutions according to customer requirements.
Customers receive assistance throughout the entire project lifecycle, including:
| Standard | Relevant Clause / Test | Description |
|---|---|---|
| IEC 62133-2 | High Temperature Test | Safety requirements for portable sealed secondary lithium cells and batteries |
| IEC 60068-2-2 | Test B: Dry Heat | Environmental testing under controlled high-temperature conditions |
| IEC 60068-2-14 | Temperature Change Test | Evaluation of products under rapid temperature variations |
| UN 38.3 | T.2 Thermal Test | Transportation safety testing for lithium batteries |
| UL 1642 | Heating Test | Safety evaluation for lithium cells |
| UL 2054 | Abnormal Temperature Test | Household and commercial battery pack safety |
| IEC 62660 Series | Battery Performance Verification | Lithium-ion traction battery testing |
| Item | Specification |
|---|---|
| Product Name | Battery Thermal Shock Test Chamber |
| Product Category | Battery Testing Equipment |
| Inner Chamber Dimensions (W×D×H) | 400 × 400 × 400 mm |
| External Dimensions (W×D×H) | 860 × 700 × 1310 mm |
| Temperature Range | RT ~ 200°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Stability | ±1.0°C |
| Temperature Uniformity | ±2°C |
| Heating Rate | (5 ± 1) °C/min |
| Temperature Holding Time | 0–9999 h Adjustable |
| Control Method | Push Button Control |
| Inner Chamber Material | SUS304 Stainless Steel, Thickness 1.2 mm |
| Outer Chamber Material | Cold-Rolled Steel Plate with Baking Finish, Thickness 1.5 mm |
| Observation Window | 250 × 250 mm Double-Layer Tempered Glass with Stainless Steel Protective Mesh |
| Equipment Weight | 75 kg |
Thermal performance is one of the most important indicators of battery safety, lifespan, and reliability. Battery thermal shock test chambers are designed to simulate the high-temperature environments that batteries may encounter during manufacturing, transportation, storage, charging, and actual operation.
This equipment provides a stable and uniform high-temperature environment, enabling manufacturers to verify whether battery products still meet performance, safety, and quality requirements after prolonged exposure to high temperatures.
Application industries include:
Your Trusted Manufacturer of Battery Testing Equipment
HongCe is a professional manufacturer specializing in IEC Testing Equipment, Battery Testing Equipment, Environmental Test Equipment, and customized laboratory testing solutions for manufacturers, certification laboratories, universities, research institutes, and quality inspection organizations worldwide.
Unlike trading companies, HongCe operates as a source manufacturer, integrating research and development, mechanical design, electrical engineering, precision manufacturing, assembly, quality inspection, and after-sales service under one roof. This allows us to maintain strict quality control while providing flexible customization to meet customers' evolving testing requirements.
With years of industry experience, our equipment has been exported to Europe, Southeast Asia, the Middle East, Africa, South America, Oceania, and many other regions. Our products are widely used in electrical appliances, consumer electronics, automotive components, lithium batteries, renewable energy systems, industrial products, and certification laboratories.
