| ブランド名: | HongCe |
| モデル番号: | HC-GX-8810 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | LC、T/T |
| 供給能力: | 20 日ごとに1 セット |
Flexible Cable Flexing Testing Machine for Rubber & PVC Insulated Cables Under Current Load | Dynamic Cable Testing Equipment
Heavy-Duty Dynamic Cable Flexing Tester for Rubber & PVC Flexible Cables with Automatic Conductor Failure Detection

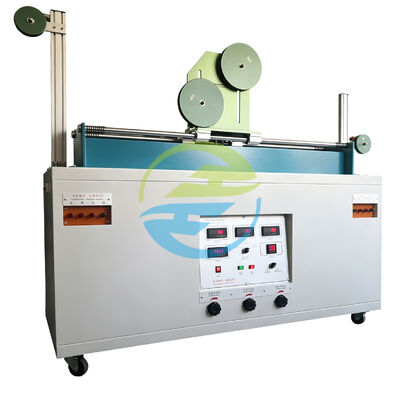

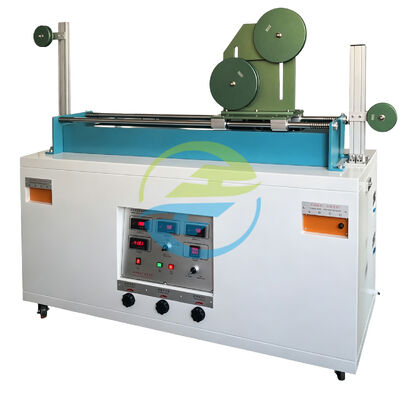

Flexible Cable Flexing Testing Machine
Dynamic Flexing Performance Testing Equipment for Flexible Power Cables Under Rated Current
When flexible cables are repeatedly bent during daily operation, their electrical continuity and insulation reliability gradually become critical factors affecting product safety and service life. Manufacturers need more than a simple bending machine—they need a reliable testing solution capable of simulating real operating conditions while monitoring electrical performance throughout the entire test.
The HongCe Flexible Cable Flexing Testing Machine is specially developed for evaluating the dynamic flexing performance of rubber insulated and PVC insulated flexible cables under load current. During testing, the system continuously monitors conductor continuity, conductor-to-conductor short circuits, and conductor-to-pulley contact. Once an abnormal condition occurs, the equipment immediately stops the test automatically, protecting both the specimen and testing system while ensuring accurate and repeatable results.
Why Manufacturers Choose HongCe Flexible Cable Testing Equipment
Choosing testing equipment is not only about purchasing a machine—it is about selecting a reliable engineering partner capable of supporting long-term production quality.
Unlike many trading companies that simply resell equipment, HongCe designs and manufactures its own testing systems, allowing every project to benefit from continuous engineering improvements, strict quality control, and responsive technical support.
Our engineering team understands international testing standards and real production environments. Every machine is designed for stable operation, high repeatability, and long service life.
With years of experience in electrical safety testing equipment, HongCe has supplied testing solutions to customers across Europe, Southeast Asia, the Middle East, South America, Africa, and many other regions.
Product Highlights
Simulates Real Working Conditions
Instead of performing a simple mechanical bending test, the equipment allows flexible cables to be tested while carrying electrical current, closely reproducing real operating environments.
Automatic Fault Monitoring
The integrated monitoring system continuously checks:
This significantly improves testing efficiency while preventing invalid test results.
High Repeatability
The optimized mechanical transmission system ensures stable bending movement throughout long-duration testing, reducing variation between repeated tests.
Reliable Long-Term Operation
Industrial-grade components, precision machining, and stable electrical control systems help maintain excellent repeatability even during continuous laboratory operation.
Suitable for International Laboratories
The equipment is designed to meet laboratory requirements for product certification, incoming quality inspection, production verification, and R&D validation.
International Reference Standards
Technical Specifications
| Item | Specification |
|---|---|
| Model | HC-GX-8810 |
| Test Station | 1 Test Position |
| Flexing Stroke | ≥1000 mm |
| Flexing Speed | Two-Pulley: 0.33 ± 0.05 m/s; Three-Pulley: 0.10 m/s (Reference) |
| Test Cable Length | Approx. 5 m |
| Test Cycles | 0–99,999,999 cycles, freely presettable |
| Two-Pulley Flexing Weights | 1 kg, 1.5 kg, 2 kg, 2.5 kg, 3 kg, 3.5 kg, 4 kg, 5 kg, 6 kg, 7 kg, 7.5 kg, 9 kg (2 pcs each) |
| Three-Pulley Flexing Weights (Optional) | 21 N, 28 N, 42 N (2 pcs each) |
| Two-Pulley Diameter | Ø60 mm, Ø80 mm, Ø120 mm, Ø160 mm, Ø200 mm (2 pcs each) |
| Three-Pulley Diameter (Optional) | Ø40 mm, Ø45 mm, Ø50 mm (3 pcs each) |
Applications
Typical Test Objects
What Can This Machine Evaluate?
Unlike conventional bending machines that only perform mechanical movement, the HongCe system continuously monitors electrical performance throughout the flexing process.
Advantages of Choosing HongCe
Factory Direct Manufacturing
Every machine is designed and manufactured by HongCe, ensuring consistent quality, competitive pricing, and reliable delivery.
Engineering-Driven Design
Our engineers continuously improve the mechanical structure, electrical system, and software to enhance testing accuracy and equipment durability.
Flexible Customization
We understand that different laboratories have different requirements.
Customization options include:
Stable Long-Term Operation
Industrial-grade components are selected to support continuous laboratory operation while maintaining excellent repeatability.
International Project Experience
HongCe equipment has been supplied to customers involved in:
FAQ
1. What types of cables can be tested?
The equipment is suitable for rubber insulated cables, PVC insulated cables, flexible power cords, appliance cables, extension cords, industrial flexible cables, and other flexible insulated cables covered by applicable standards.
2. Can the machine test cables under electrical load?
Yes. The equipment is specifically designed to evaluate cable performance while carrying load current, providing a more realistic assessment of service conditions.
3. Does the machine automatically stop after a fault is detected?
Yes. The monitoring system automatically stops testing when conductor interruption or abnormal electrical contact is detected.
4. Which industries use this equipment?
Cable manufacturers, appliance manufacturers, testing laboratories, research institutes, certification organizations, and quality inspection agencies.
5. Can testing parameters be adjusted?
Yes. Test conditions can be configured according to applicable standards and customer requirements.
6. Is operator training provided?
Yes. HongCe provides complete operation guidance and technical training.
7. Can the machine be customized?
Yes. OEM and ODM customization services are available.
8. Is overseas installation supported?
Remote installation guidance and technical support are available worldwide.
