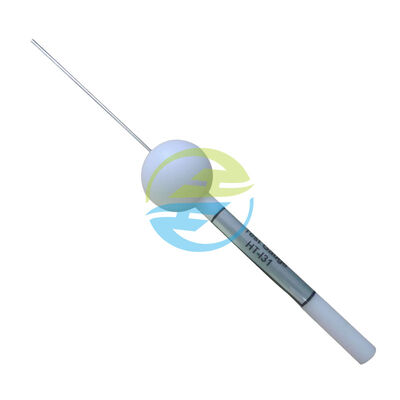

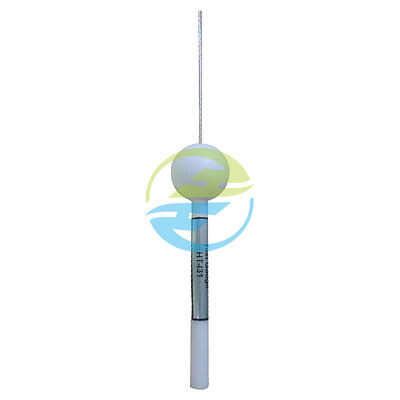

HongCe 4mm Hazardous Live Parts Test Finger Probe is a precision standard test tool fully compliant with IEC 61010, IEC 60065, EN 61010-1, UL 3101-1 and CSA 1010-1. It verifies protection against access to hazardous live parts through top openings, widely used for product safety certification, quality control and R&D verification. As a direct source factory, HongCe ensures stable quality, short lead times and complete pre-sales & after-sales support for global manufacturers, labs and certification bodies.
Electrical safety is the bottom line of every electronic product, household appliance, industrial equipment and electrical device. Exposed hazardous live parts or unqualified enclosure protection can lead to electric shock, fire and other serious accidents. Standardized test finger probes have become an indispensable tool for global safety verification.
HongCe 4mm Hazardous Live Parts Test Finger Probe is meticulously designed and manufactured in strict accordance with international mainstream safety standards. It accurately simulates the access path to detect whether the equipment shell can effectively prevent contact with dangerous live parts, providing objective, repeatable and authoritative test data.
Strictly manufactured in accordance with IEC 61010, IEC 60065, EN 61010-1, UL 3101-1, CSA 1010-1 and other standards, test results recognized by major certification bodies.
All dimensions strictly controlled within tolerance, ensuring consistency and accuracy of each test.
Made of high-quality metal and insulated materials, wear-resistant, corrosion-resistant, stable performance for long-term use.
Can be equipped with connectors for anti-electric shock test; handle end can be drilled with M6 threaded hole for connecting push-pull dynamometer to meet enclosure protection test.
Comfortable handle design, clear structure, simple to use even for new operators.
Audio, video and similar electronic apparatus – Safety
Clause 9.1.3: Test requirements for access to hazardous live parts
Safety requirements for electrical equipment for measurement, control and laboratory use – Part 1: General requirements
Clause 6.2.3: Protection against access to hazardous parts
Safety requirements for electrical equipment for measurement, control, and laboratory use
Relevant clauses for hazardous parts protection test
| Parameter | Value |
|---|---|
| Product Name | 4mm Hazardous Live Parts Test Finger Probe |
| Probe Diameter | 4 mm |
| Probe Length | 100 mm |
| Circular Baffle Diameter | 35±0.2 mm |
| Handle Diameter | 10 mm |
| Handle Length | 100 mm |
| Applicable Standards | IEC 61010, IEC 60065, EN 61010-1, UL 3101-1, CSA 1010-1 |
A: Yes. All dimensions, structures and performances are manufactured strictly in accordance with standard requirements, with complete factory inspection reports.
A: Yes. It meets the corresponding standard requirements and is widely used by global certification laboratories and manufacturers for certification testing.
A: We provide factory calibration reports. TUV, ITS, SGS, CNAS and other third-party authoritative calibration certificates are available at an additional cost.
A: Yes. It can be equipped with connectors for anti-electric shock test, or drilled with M6 threaded hole at the handle end to connect with push-pull dynamometer for enclosure protection test.
A: MOQ is 1 set. Standard models deliver in 7-15 days, customized models 15-25 days. Monthly supply capacity reaches 100 sets to meet bulk orders.
