| ブランド名: | HongCe |
| モデル番号: | GW-2 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | T/T |
| 供給能力: | 月5セット |
| Parameter | Specification |
|---|---|

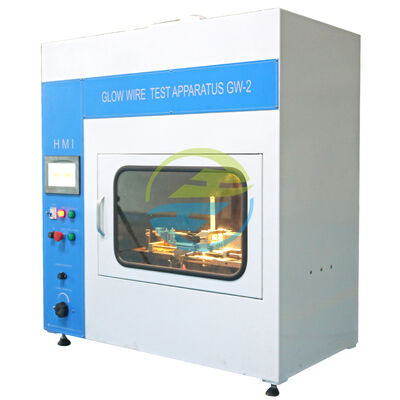

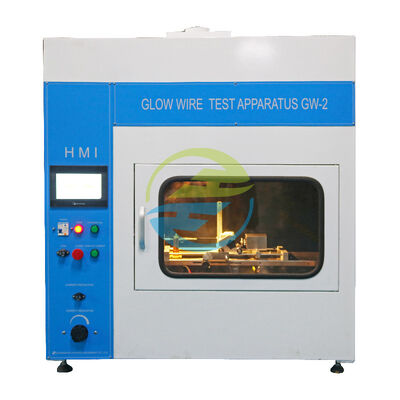

| Model | GW-2 (Touch screen) |
| Working voltage | 220V / 50Hz |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Glowing filament | Ф4mm ± 0.04mm (> 77% Ni/20 ± 1% Cr) special standard ring shape, horizontal standing |
| Specimen pressure on glowing filament | 0.95N ± 0.1N |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm/s - 25mm/s |
| Temperature calibration | Calibration temperature: 960°±10°C, hot wire by electric heating |
| Thermocouple | RS imported 1mm armour nickel-chromium/nickel/nickel aluminum K-Thermocouple, temperature resistance 1100° |
| Silver foil | Purity 99.8%, area: 2m², thickness: 0.06mm |
| Tray | A layer of silk paper (12~30g/m³) on 10mm thick pine board, distance of 200±5mm below test sample |
| Test chamber | >0.5 cube, sample distance from inside of box >100mm, black background, background illuminance ≤20Lx, with exhaust fan |
| Testing time | 30s ± 1s |
| Test procedure | Automatic sample movement, car returns automatically after glow-wire enters test sample by 7mm |
| Lighting | Equipped with lighting in test chamber, with control |
| Dimension | 1100×550×1200mm, 140kg |
