| ブランド名: | HongCe |
| モデル番号: | HH0801 |
| MOQ: | 1セット |
| 価格: | Negotiatable |
| 支払条件: | T/T |
| 供給能力: | 10セット/month |
| Item | Parameter |
|---|---|
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension:WDH=750*1400*1750mm, fully enclosed water tank, SUS304 material |

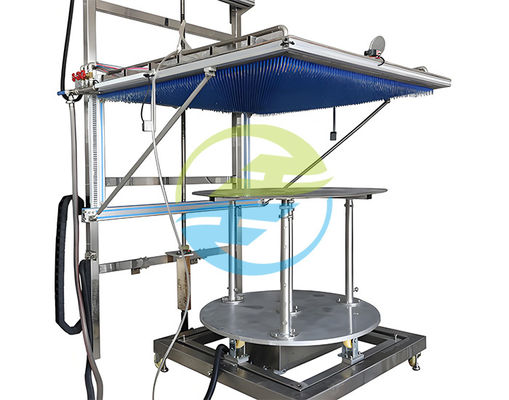

| Drip test area | 1000*1000mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) | 1 mm/min or 3 mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted |
| Turntable | Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing ≤150㎏electrical equipment, Diameter:800mm, Adjustable height of the adjustable telescopic tube: 300mm,1200mm-1500mm |
| Site requirements | Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation. |
| Area covered | WDH =1500mm*1500mm*3300mm, the size can be set according to customer's requirement |
