| ブランド名: | HongCe |

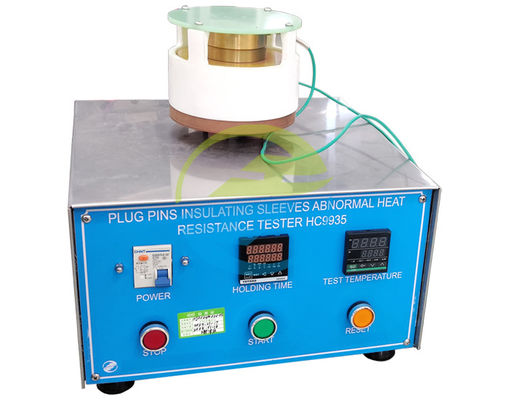

| モデル番号: | HC9935 |
| MOQ: | 1セット |
| 価格: | Negotiatable |
| 支払条件: | T/T |
| 供給能力: | 10セット/month |
| Standard | Description |
|---|---|
| IEC 60884-1 | Plugs and socket-outlets for household and similar purposes - Part 1: General requirements | Clause 24.2 (Abnormal heat resistance of insulation sleeves), Clause 25 (Heat and fire resistance) |
| IEC 60695 | Fire hazard testing standards |
| Item | Parameters |
|---|---|
| Insulation part | 5 mm thickness, round and flat, diameter equal to twice the maximum permissible dimension of the engagement face of the test sample |
| Metal part B (fixture) | Brass, length at least 20 mm, provide fixtures plug according to relevant standard |
| Distance between insulation part and metal part | 3±0.2mm, ensures the air convection around the pin |
| Distance from thermocouple to metal part B | 7±0.5mm |
| Hole for plug pin in metal part B | 0.1 mm larger than the maximum dimensions of the pins |
